Omega Aircom Piping

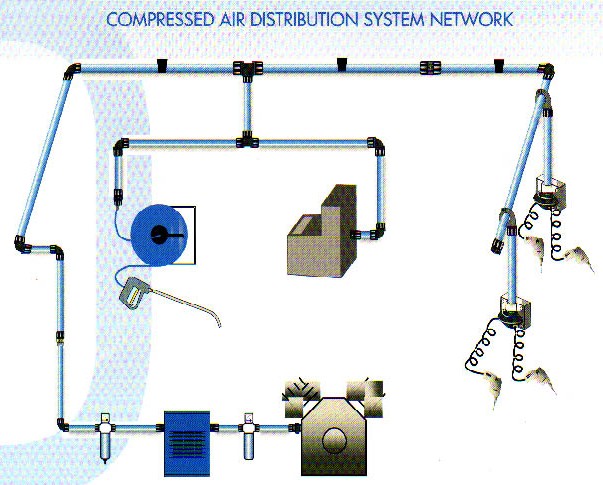

| Omega Aircom piping is an integrated, flexible system of precision aluminum piping and space age thermoplastic fittings that responds to the new competitive reality in many industries. Businesses need the ability to integrate new technology and equipment, as well as expand and contract their production capacity quickly and with a minimum of downtime. The Omega Aircom piping system, with it's easy to install or retrofit components and superior construction, saves time and money by minimizing downtime and reducing pressure drop, ensuring that your compressed air distribution system works at maximum efficiency. |
|
Piping
- Tubular extruded aluminum pipe

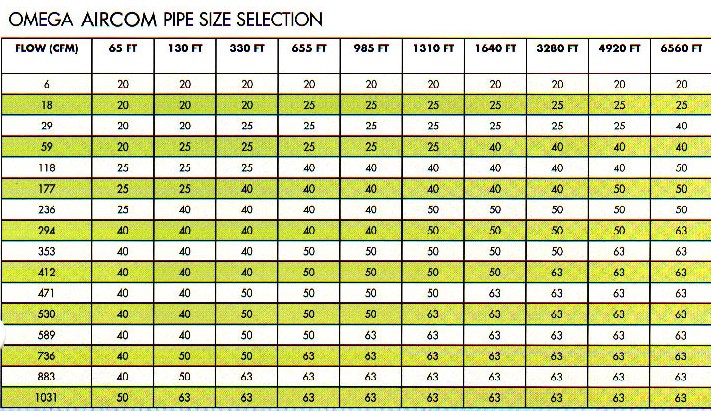

- Available in 9 sizes, 12,16,20,25,32,40,50,63 & 80 mm
- Lightweight
- External pipe painted with powder-coated blue paint
- Smooth, clean, non-corrosive, rust proof internal finish
- Easy to install and adapts to existing metal pipe systems
- Burst- tested to 1740 pounds, rated for 174 PSIG operating pressure
- Compression fittings made from polyamide plastic 12mm to 63mm
- 80mm fittings are constructed of aluminum
- Smooth internal finish
- Metal NPT adapters available for adapting to steel pipe systems
- Quick branch drop leg fittings can be adapted anywhere in the pipe network
- Oil resistant O-ring seals
Installation
- Installation time is 50% to 75% quicker than with conventional metal pipe systems
- Little layout planning required due to system flexibility
- Minimal downtime when incorporating additional piping to existing system
- System can be modified easily at a very low cost
- System can be easily dismantled and reinstalled at a new facility
Omega Aircom Pipe System Benefits
- Low pressure drops results in significant energy savings
- Substantial savings due to lower labour costs
- Pipe threading equipment is not required
- Half the weight of metal pipe systems
- Smooth surface allows for higher flows with less resistance
- Aluminum pipes prevent the contamination prevalent in metal piping systems
- Reduced maintenance and equipment replacement costs
- Extended life for production machinery
- System maintains air quality after treatment
- Aesthetically appealing
- TSSA/CRN Registered, ISO 9002 Certified
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
