HVAC COMPRESSED AIR SYSTEMS - DEVAIR HDI & SDI SIMPLEX & DUPLEX

HEAVY DUTY INDUSTRIAL COMPRESSORS &

STANDARD DUTY INDUSTRIAL COMPRESSORS

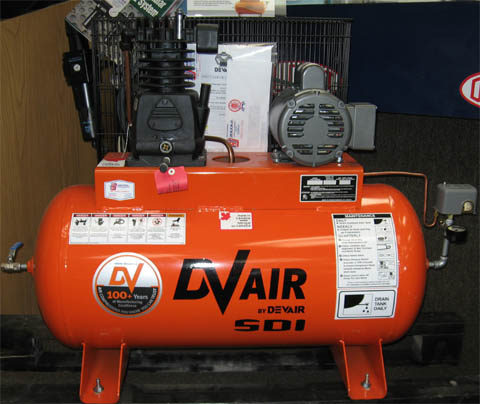

SDI 1HP 2HP 3HP

Available in three sizes, SDI HVAC compressors are specifically designed to meet the needs of HVAC specialists. Splash lubricated cast iron pumps are designed for high air delivery at low speeds, reducing wear and downtime. Factory equipped with optional magnetic starters, ASME standard air receivers and OSHA standard belt guards make theses safe and energy efficient units for your HVAC and other small horsepower projects.

Built with care and attention to detail that sets all Devair compressors apart from the competition, all models are factory tested, independently certified, and warranted for two years.

HDI 5HP to 30HP Dual Stage Base Mounted & Duplex Heavy Duty Industrial

Model	HP	Pump	Tank	Displ./Del.CFM	RPM	Weight
SDI1-2030	1HP	DEV-20	30gal.	5.1/3.2	950	231
SDI2-3030	2HP	DEV-30	30gal.	11.8/7.4	950	250
SDI3-4060	3HP	DEV-40	60gal.	15.0/10.5	890	365



Standard Features:

• Cast iron compressor pump
• Industrial grade motor
• Totally enclosed OSHA belt guard
• Unloaded starting
• Ball valve air outlet
• Splash lubrication



HDI 1/2 HP to 2 HP

Our HDI 1/2 to 2HP reciprocating pump driven compressors offer all the rugged qualities that you have come to rely on from Devair. When low maintenance and ultra reliability are factors, you can't beat a compressor from Devair.

Standard Features:

• Cast iron compressor pump
• Pressure lubrication to journal bearings
• Industrial grade motor
• Oversized main bearings and crankshaft
• Totally enclosed OSHA belt guard
• ASME approved air receivers
• Air receiver pressure gauge
• Ball valve air outlet
• Pressure switch



Simplex Air Compressors:

Model	HP	Pump	Tank	Displ./Del.CFM	RPM	Weight
UDJ-5031	1/2	123	30gal.	2.8/2.0	445	227
UDK-5031	3/4	123	30gal.	4.4/3.0	695	231
UDL-5031	1	123	30gal.	5.7/3.9	890	237
UDL-5032	1	223	30gal.	5.7/3.7	445	400
UDM-5032	1 1/2	223	30gal.	8.9/5.6	695	416
UDM-5032	2	223	30gal.	11.4/7.0	890	435



Duplex Air Compressors:

Model	HP	Pump	Tank	Displ./Del.CFM	RPM	Weight
UDJ-5542	1/2	123	60gal.	2 x 2.8/2.0	445	446
UDK-5542	3/4	123	60gal.	2 x 4.4/3.0	695	447
UDL-5541	1	123	60gal.	2 x 5.7/3.9	890	454
UDL-5542	1	223	60gal.	2 x 5.7/3.7	445	504
UDM-5542	1 1/2	223	60gal.	2 x 8.9/5.6	695	507
UDM-5542	2	223	60gal.	2 x 11.4/7.0	890	517
