SIMPLIFIED SERVICE / NO MESS
Lightweight, easy to change cartridge and the exterior remains clean and dry (no dirty hands)

UNIQUE ADSORPTION MATERIAL
New filling material that is extremely light, not messy and has increased performance

RELIABLE OPERATION
Works well with all lubrication types

ENVIRONMENTALLY SAFE
Cartridge can be disposed of normally and is safe for any sanitary land-fill

FUTURE PROOF
Easy expansion with specifically designed accessories

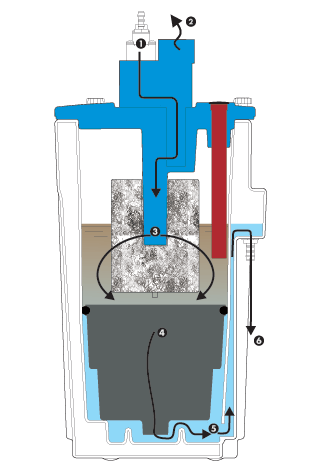

Function

The oil contaminated condensate flows under pressure into the newly designed pressure relief chamber.

❶ Here, the pressure is released without creating turbulence downstream of the condensate inlet.

❷ The oil contaminated condensate flows into the high volume pre-filter, which is characterized by its ideal flow pattern from the inside to the outside.

❸ Here the remaining oil droplets are bound to the pre-filter. It also deals with any residual floating oil in the upper chamber.
As the pre-treated condensate enters the main cartridge the remaining oil is adsorbed and locked into our advanced filter material where it cannot escape.

❹ The condensate is now fully treated and flows around the lower chamber wall toward the clean water outlet.

❺ The final result is purified water suitable for discharge directly into the sewer system.

❻ Thanks to the cartridge technology, filter replacement is both quick and clean; and all without the use of activated carbon.
