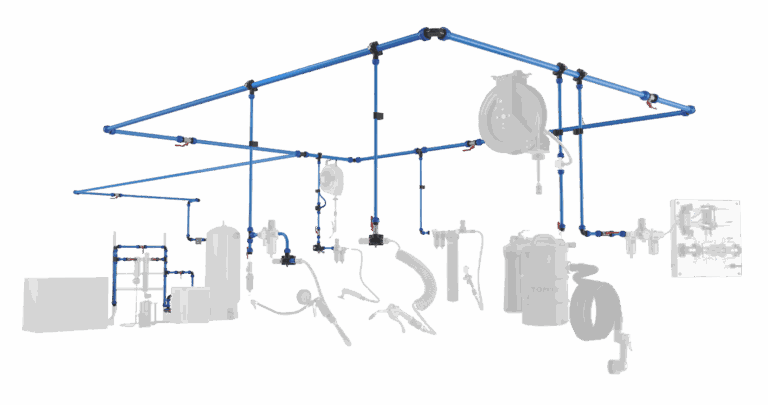

Topring Air Piping Systems

The most advanced compressed air distribution system in Canada. Lightweight, corrosion-resistant, and CRN approved.

Trusted by over 3,000 Canadian companies. From small shops to Fortune 500 distribution centers, Topring delivers consistent air flow.

Resists corrosion, UV, and heat. Unlike steel, it will never rust, ensuring your air stays clean and your tools last longer.

CRN-certified fittings with double-lobe gaskets prevent expensive air leaks, saving you money on energy costs.

Double-lobe gaskets ensure a hermetic seal. Easy insertion with zero leakage.

ANSI/ASME flanges for seamless compressor connections. V-Clamps allow fitting connections without cutting pipes.

Install a descent drop on a live system without cutting the main line. Designed to prevent water from entering air tools.

General Specs Pipe & Fittings Certifications

Max Pressure	232 PSI (16 BAR)
Fluids	Compressed Air, Vacuum, Inert Gases, Nitrogen
Vacuum Level	-28.94 in Hg / -0.98 BAR
Burst Pressure	1160 PSI (5:1 Safety Factor)
Temperature	-20°C to 80°C
Material	100% Recyclable Aluminum (Silicone & Oil Free)

Pipe Material	EN AW 6063 Extruded Aluminum Alloy
Coating	Electrostatic Paint (Blue RAL 5012)
Pipe Sizes (9.8ft)	16, 20, 25mm
Pipe Sizes (18ft)	20mm up to 160mm
Fitting Material	Aluminum Body (EN AB 46100), Stainless Steel Teeth

Safety & Standards:

Quality & Environment:

Complete parts list

Step-by-step assembly

STEP files for system design
