DeVillbiss
Air Vizor™
Supplies Grade D Breathable Air*
* Air Vizor™ requires proper air line filtration and carbon monoxide (CO) monitoring to complete and approved supplied air respirator. A carbon monoxide (CO) monitor may be purchased locally or from ENMET Corp. (734) 761-1270 (phone). Order form available from DeVilbiss upon request.

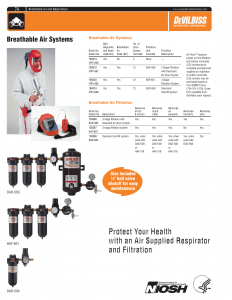

| Breathable Air Systems | |||||
| Order No. Model No. | Belt Regulator and Hood Assembly | Breathable Air Hose (30′) | No. of Visor Covers Included | Filtration Unit Included | Filtration Description |
| 165013 MPV-625 | Yes | No | 2 | None | |
| 160019 MPV-651 | Yes | Yes | 12 | DAD-503 | 3 Stage Filtration with Desiccant Air Dryer System |
| 160020 MPV-652 | Yes | Yes | 12 | HAF-601 | 3 Stage Filtration System |
| 160018 MPV-650 | Yes | Yes | 12 | DAD-504 | Desiccant Retrofit System |
| Breathable Air Systems | ||||||
| Order No. Model No. | Desc. | Removes dirt to 5 microns | Rem. liquid water | Rem. oil aerosols | Rem. humidity | Rem. odor |
| 130089 DAD-503 | 3-state filtration with desiccant air dryer system | Yes | Yes | Yes | Yes | Yes |
| 130087 HAF-601 | 3-stage filtration system | Yes | Yes | Yes | No | Yes |
| 130096 DAD-504 | Desiccant Retrofit System | Yes, when used with DAD-500 or HAF-518 | Yes, when used with DAD-500 or HAF-518 | Yes, when used with DAD-500 or HAF-518 | Yes, when used with DAD-500 | Yes |
